Meeting Table Edge Profiles

The edges shown below are available for all our meeting tables. For our occasional table edges and cafe table edges, please see the individual product pages as the edges vary by collection. For all case goods edges offered, please view our Case Goods Edges page.

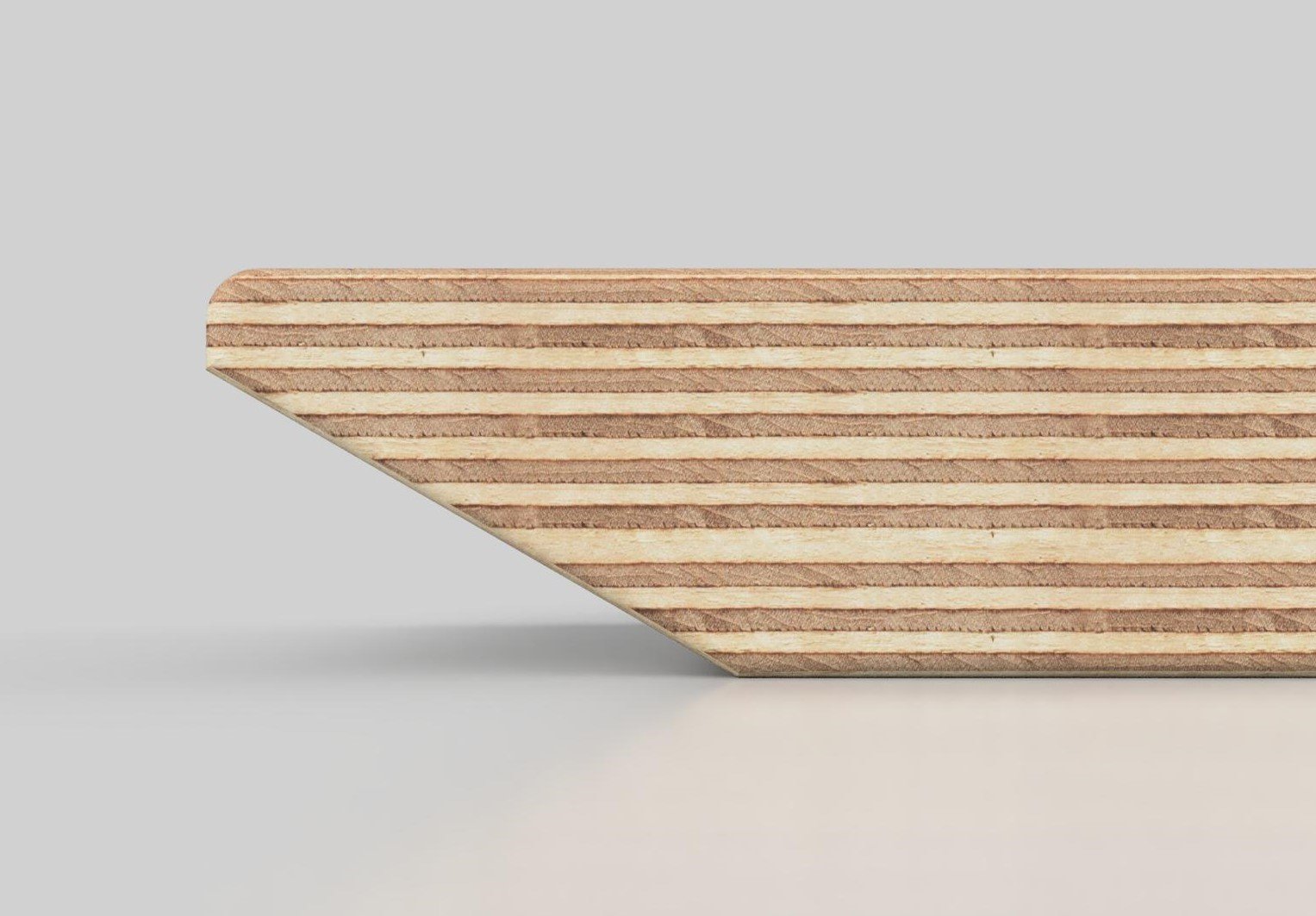

Silhouette Edge - 01

A vertical flat edge followed by a 30degree slanted edge, running all sides of the table, that fades toward the bottom.
Available in Rectangle, Square, Round, Boat, Delta, Pebble, Race Track, Radiused End, and Stadium table top shapes.

SOLID WOOD TOP
1.5” THICK

VENEER OR LAMINATE TOP
SOLID WOOD EDGE
PAINTED MDF CORE BEVEL
1.25” THICK

VENEER OR LAMINATE TOP
EXPOSED PLYWOOD EDGE
1” THICK

SOLID SURFACE TOP
EXPOSED PLYWOOD EDGE
1.5” THICK

SOLID SURFACE TOP
1.5” THICK



Eased Edge - 02

A smooth edge with 1/8” radius on top and bottom, offered on all sides of the table. Available in all meeting table shapes.
Available in Rectangle, Square, Round, Boat, Delta, Pebble, Race Track, Radiused End, and Stadium table top shapes.

SOLID WOOD TOP
1.5” THICK
.

STONE TOP
BUILT UP STONE EDGE
1.5 THICK

VENEER OR LAMINATE TOP
SOLID WOOD EDGE
1.25” THICK

STONE TOP
1.1875 THICK
1” PAINTED PLY SUBTOP

VENEER OR LAMINATE TOP
EXPOSED PLYWOOD EDGE
1” THICK

STONE TOP
.75 THICK
.75 PAINTED PLY SUBTOP

SOLID SURFACE TOP
EXPOSED PLYWOOD EDGE
1.5” THICK

SOLID SURFACE TOP
1.5” THICK

THINSCAPE TOP
.5” THICK
.75” PAINTED PLY SUBTOP

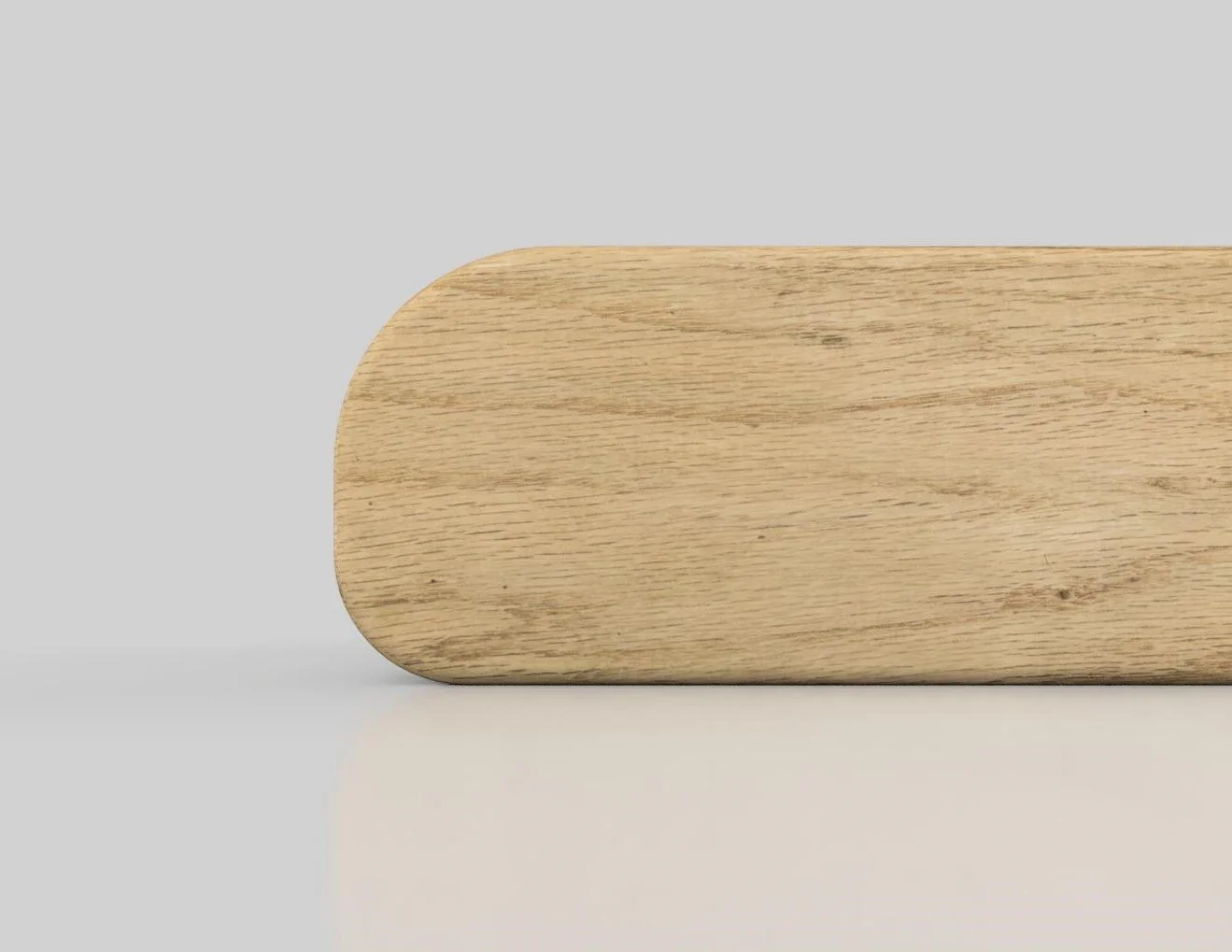

Bullnose Edge - 03

A rounded edge offered on all sides of the table.
Available in Rectangle, Square, Round, Boat, Delta, Pebble, Race Track, Radiused End, and Stadium table top shapes.

SOLID WOOD TOP
1.5” THICK

VENEER OR LAMINATE TOP
SOLID WOOD EDGE
1.25” THICK

SOLID SURFACE TOP
1.5” THICK



Slope Edge - 04

A smooth edge followed by a rounded edge, running all sides of the table that curves toward the bottom.
Available in Rectangle, Square, Round, Boat, Delta, Pebble, Race Track, Radiused End, and Stadium table top shapes.

SOLID WOOD TOP
1.5” THICK

VENEER OR LAMINATE TOP
SOLID WOOD EDGE
1.25” THICK

VENEER OR LAMINATE TOP
EXPOSED PLYWOOD EDGE
1” THICK

SOLID SURFACE TOP
1.5” THICK



Square Edge - 05

A smooth, straight edge with 1/16” radius on top and bottom, offered on all sides of the table. Available in all meeting table shapes.
Available in Rectangle, Square, Round, Boat, Delta, Pebble, Race Track, Radiused End, and Stadium table top shapes.

SOLID WOOD TOP
1.5” THICK

VENEER OR LAMINATE TOP
SOLID WOOD EDGE
1.25” THICK

VENEER OR LAMINATE TOP
EXPOSED PLYWOOD EDGE
1” THICK

SOLID SURFACE TOP
EXPOSED PLYWOOD EDGE
1.5” THICK

SOLID SURFACE TOP
1.5” THICK



Traditional Edge - 06

A short “shoulder” with 1/2” radius above a straight edge, running on all sides of the table.
Available in Rectangle, Square, Round, Boat, Delta, Pebble, Race Track, Radiused End, and Stadium table top shapes.

SOLID WOOD TOP
1.5” THICK

VENEER OR LAMINATE TOP
SOLID WOOD EDGE
1.25” THICK



Live or Carved Edge - 07

Live Edge - A natural edge roughly following the grain line of the Western Maple plank or slab stock, after the bark has been removed. Available in square and rectangle table shapes.
Carved Edge - A carved edge following the grain line of the plank to mimic a live edge. A carved edge will have less undulation than a true live edge. Available in square and rectangle table shapes.

SOLID WOOD TOP
1.5” THICK

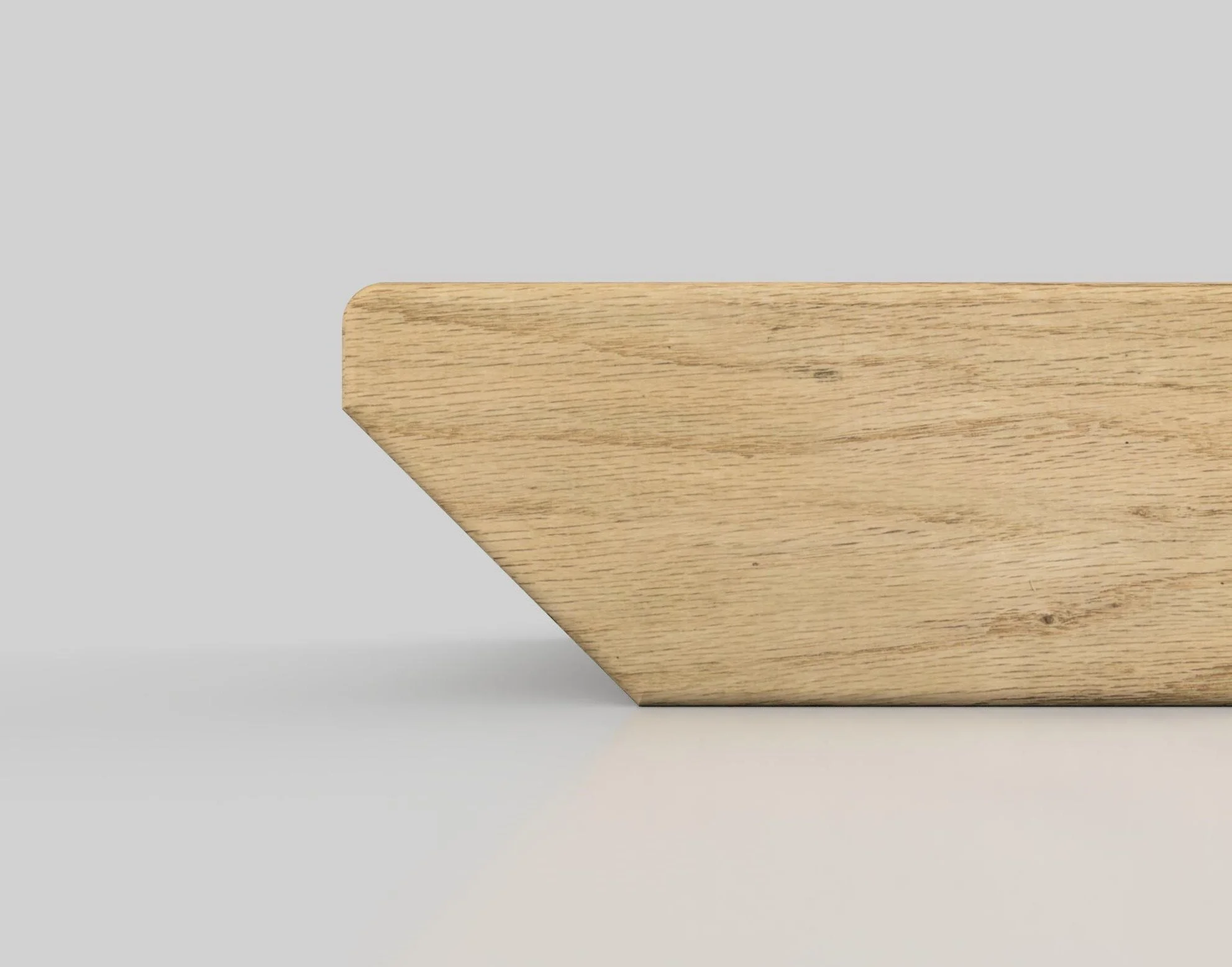

Bevel Edge - 08

A vertical flat edge followed by a 45degree slanted edge, running all sides of the table, that fades toward the bottom.
Available in Rectangle, Square, Round, Boat, Delta, Pebble, Race Track, Radiused End, and Stadium table top shapes.

SOLID WOOD TOP
1.5” THICK

STONE TOP
1.1875” THICK
1” PAINTED PLY SUBTOP

VENEER OR LAMINATE TOP
SOLID WOOD EDGE
1.25” THICK

STONE TOP
.75” THICK
.75” PAINTED PLY SUBTOP

VENEER OR LAMINATE TOP
EXPOSED PLYWOOD EDGE
1” THICK

SOLID SURFACE TOP
EXPOSED PLYWOOD EDGE
1.5” THICK

SOLID SURFACE TOP
1.5” THICK
